Felfil EVO Extruder & Spooler Bundle

SKU: FBUN-1

Regular price: Price: $1,549.00 USD
Regular price: List Price:
Sale price: Price: $1,549.00 USD
Unit price: per

Color Transparent Yellow Black Clear White

Evo Nozzle 1.75 mm 2.85 mm

Additional Evo Nozzle No 1.75 mm 2.85 mm

Product variants

Quantity

Great reasons to buy from us:

Felfil EVO Extruder & Spooler Bundle

Shipping from Italy is included in price and arrives within 1 week.

Complete Filament Factory for your Desktop

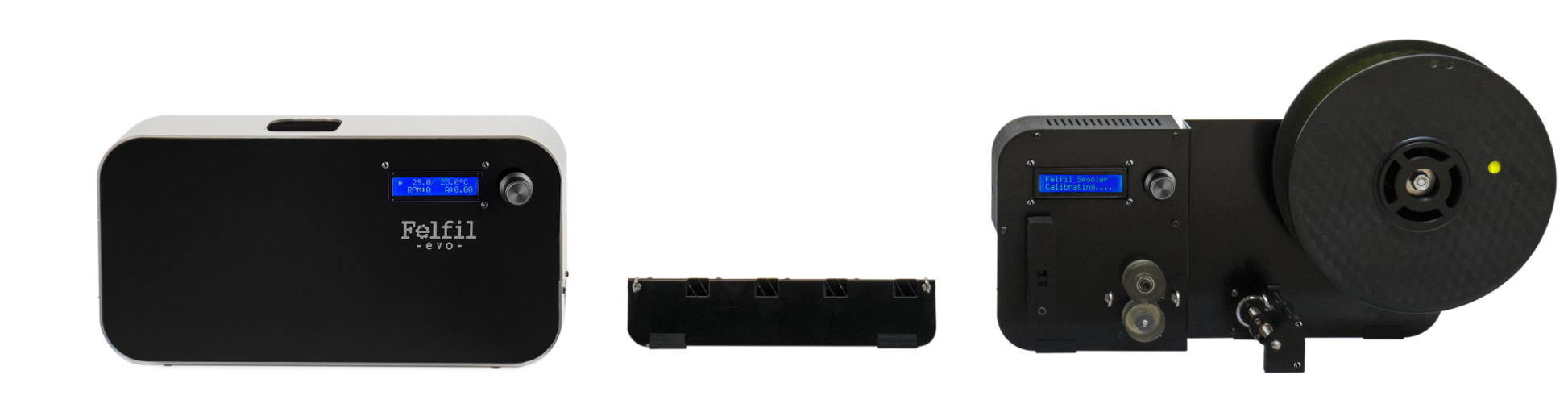

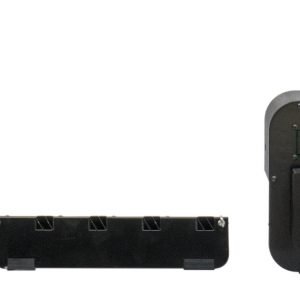

Get the complete extrusion system at a special price: Felfil Evo and Felfil Spooler (fan included) bring extrusion to your desktop. Place Felfil Evo, the fan array and Felfil Spooler on your desktop and start to make your own filament.

Using the Felfil Bundle you can create recycled filament from shredded prints or custom filament from your unique material.

Felfil Bundle is the most compact filament extrusion system on the market., allowing you to produce filament for your 3D printing starting from either virgin pellets or shredded recycled materials.

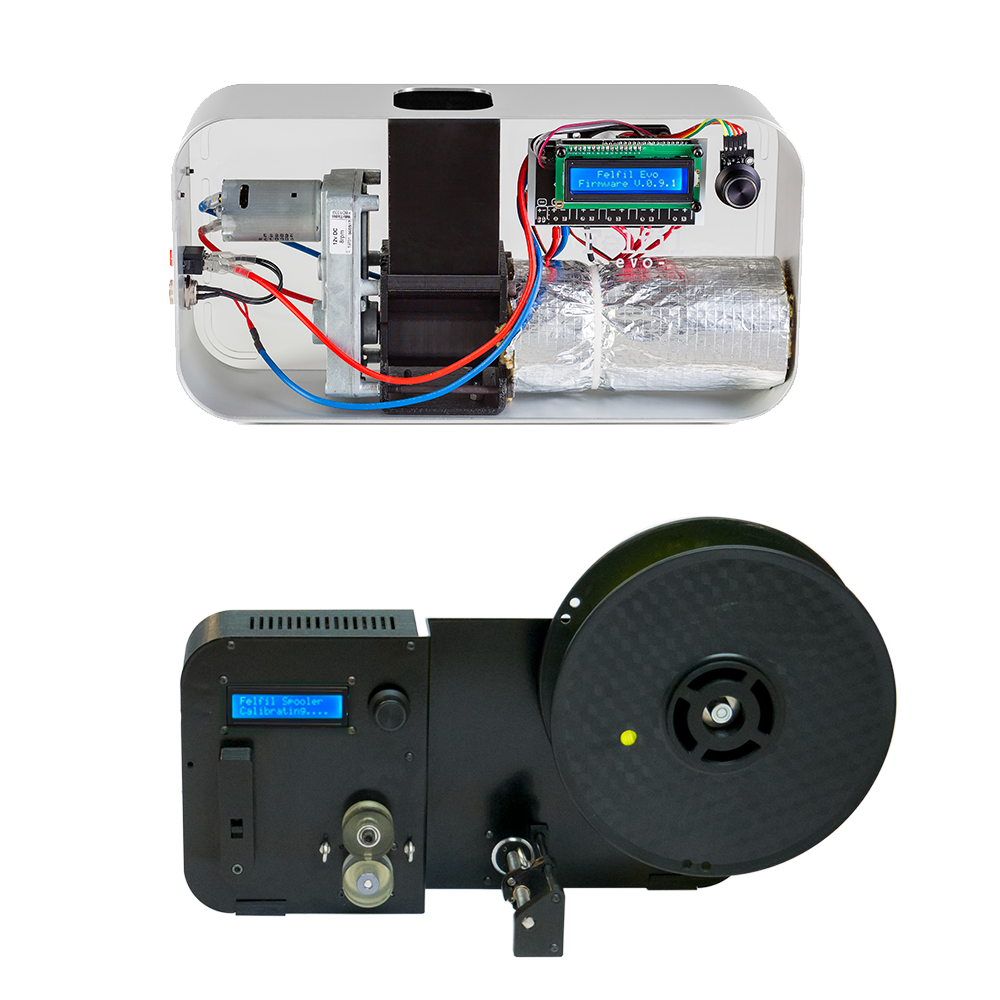

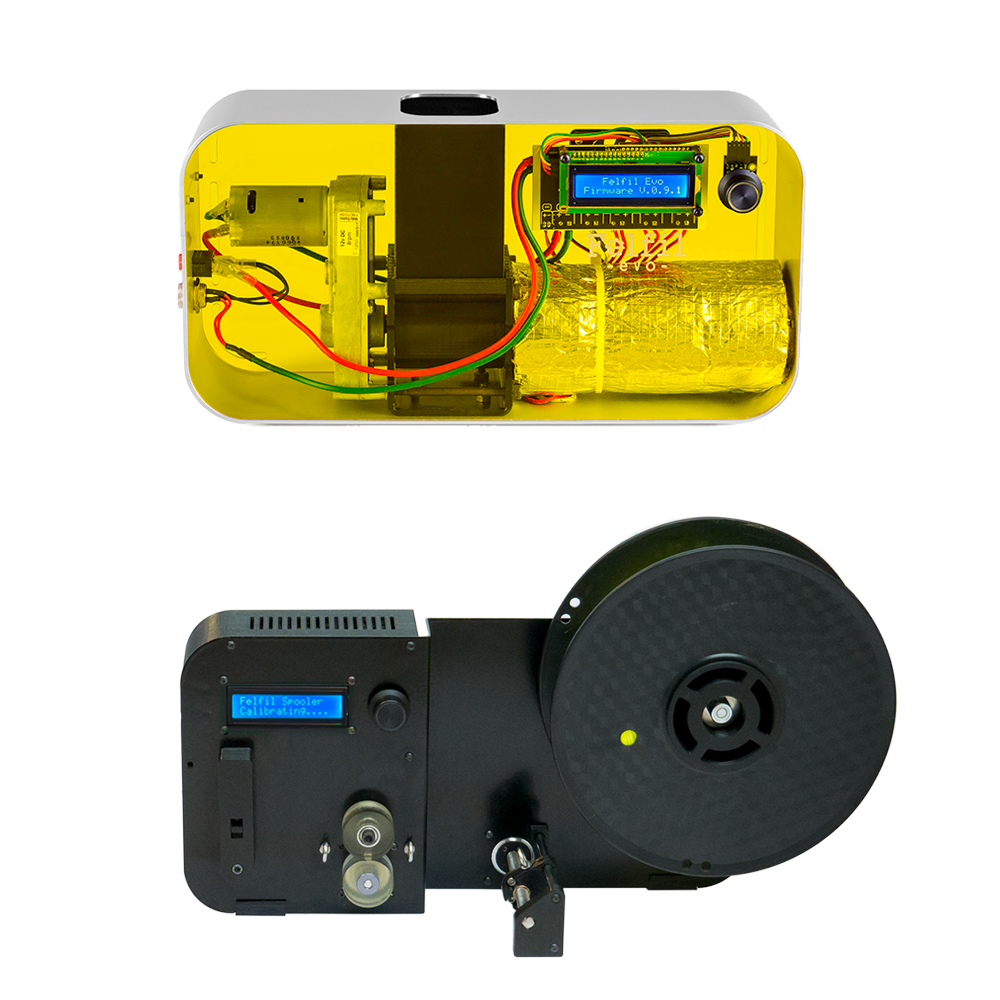

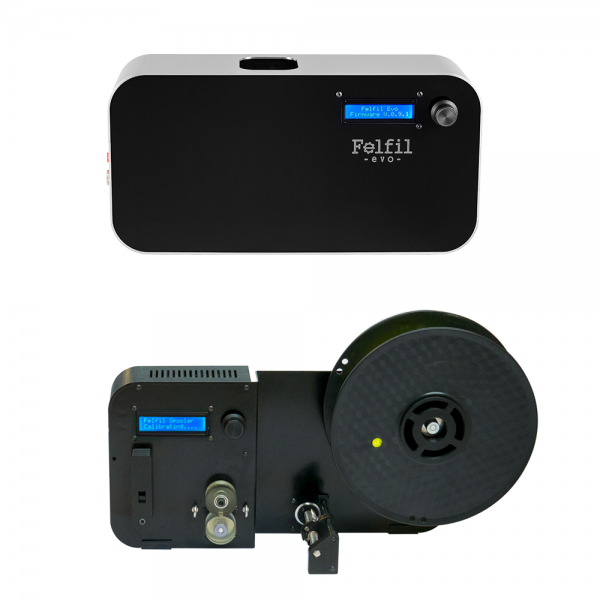

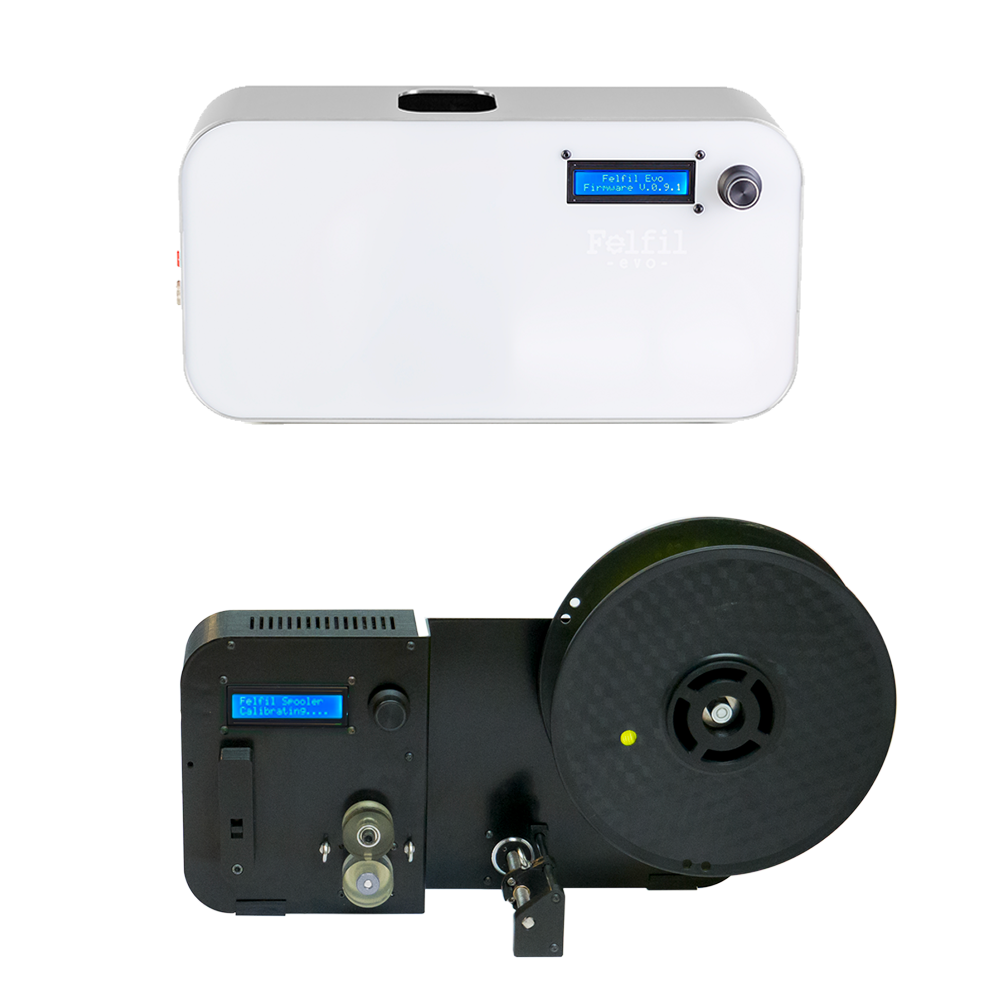

The Felfil Bundle system includes everything that is needed to develop and produce filament for any FDM 3D printer, it includes:

Felfil Evo, a single screw filament extruder with a specifically designed bronze nozzle which can works with a really small quantity of material (100gr).
Felfil Spooler, an automatic filament winder.

Thanks to Felfil Extrusion System you will be able to test your new designed polymer, turning your concept polymer to a finished project without lead time.

RECYCLE YOUR WASTES

Use failed 3D prints or plastic waste to create your filament

RESEARCH AND DEVELOPMENT

Develop your material in-house saving time

MAKE YOUR MATERIAL

Experiment with compounds, additives or colorants.

Specifications

MULTI MATERIALS

PLA - ABS - PETG and more

The extrusion system is suitable for many different materials, from the common ones to composite.

EXTRUSION SPEED

starts from from 1.15 m/minute and depends on the material you are extruding, but you can regulate the rpm speed from 1 to 9.

DIAMETER RANGE

from 0.5mm to 3mm

Calibrate filament of your needed size thanks to the Felfil Spooler measure and calibration system.

TEMPERATURES

Limited at 250° C but upon request can unlock the temperature until 300°c on specific requests, however 250°C covers many polymers.

SENSOR

10 microns

A high precision sensor measures the filament produced while the software adjusts its diameter.

EXTRUSION SCREW

Specifically made screw made from steel and has a conic profile in order to improve the materials compression with 12,7 l/d ratio

INDUSTRIAL GRADE COMPONENTS

Both, Felfil Evo Filament Extruder and Felfil Spooler, was developed to include industrial and high quality components.

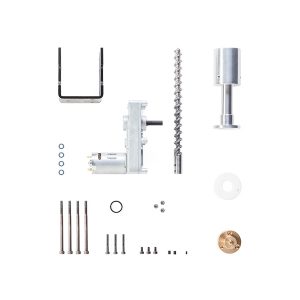

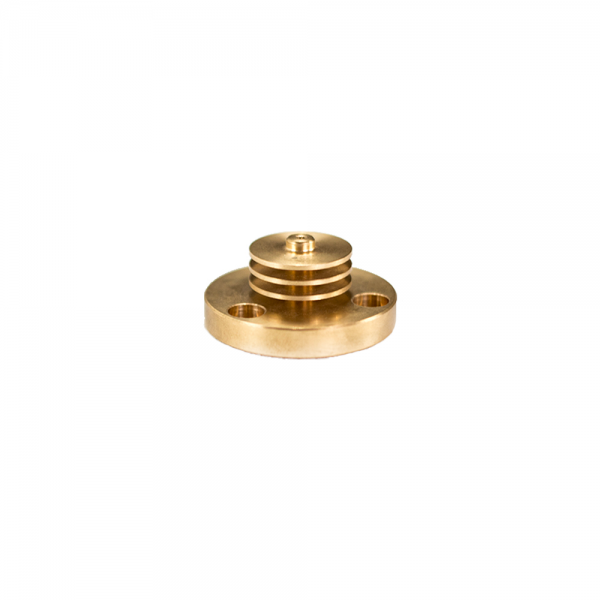

The extrusion screw is made with steel K100 with a conic profile in order to guarantee a good compression rate; the nozzle is specifically made with bronze and includes a passive cooling system to cool down the filament immediately. The High torque gearmotor allows to extrude a high range of materials thanks to its 23N/m torque.

Felfil Spooler uses an high precision sensor to measure the filament, and two puller wheels made in a soft polyurethane that allow to pull the extruded filament without compressing it.
