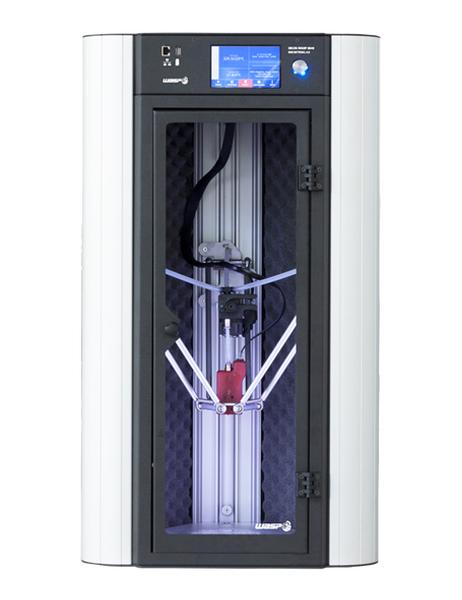

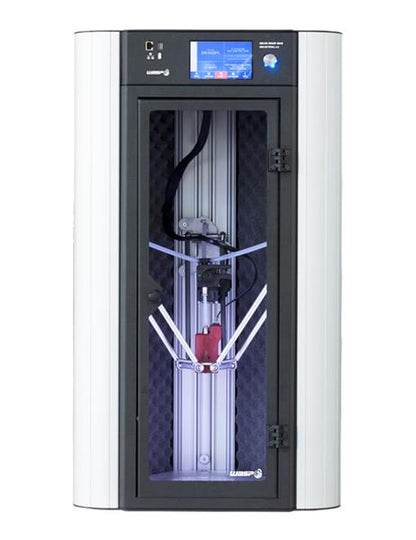

Delta WASP 2040 Industrial (4.0)

DESCRIPTION

Professional delta printer made of metal, with non-deformable belts loaded in steel, insulated for thermal and noise insulation.

An innovative system of controlled chamber up to 80 ° and cooling of the " Hot and Cold Technology " mechanism, allows the optimal printing of technical materials.

The technological advancement of WASP has made it possible to configure the printer according to user needs. Switching from a single " RED SPITFIRE EXTRUDER " extruder for fast prints to a " ZEN EXTRUDER " double extruder for multi-material prints to " FLEX EXTRUDER " to print soft materials (up to shore 50A) takes a few minutes.

The Delta WASP 2040 INDUSTRIAL 4.0 can be connected to the network and therefore manage the printer directly via mobile phone, tablet or computer. A camera has been inserted inside the printer to monitor printing even if located elsewhere.

Specifications

TECHNICAL FEATURES

• Maximum print volume  Ø 200 xh 400 mm
• Minimum layer height  50 microns
• Maximum print speed (*)  500 mm / s
• Maximum movement speed (*)  800 mm / s
• Acceleration (*)  15,000 mm / s2  Heated
• print bed up to to 120 ° C
• controlled printing room  heated to 80 ° C
• standard nozzle diameter WASP SPITFIRE RED Extruder  with LT cartridge with nozzle diameter 0.4 mm
• * All data relating to speed refers to the Delta WASP 2040 INDUSTRIAL 4.0 configured with WASP SPITFIRE RED Extruder 0.4 mm.

MATERIALS

Usable filaments

• Ø1.75 with "WASP SPITFIRE RED Extruder" and "WASP ZEN Extruder"
• Ø2.85 with "WASP FLEX Extruder"
• ASA
• ABS
• HIGH-IMPACT PS
• PETG
• TPU
• TPE
• POLYPROPYLENE
• POLYCARBONATE
• PC + ABS
• PPS
• PMMA
• PVA
• PA
• PA carbon
• PLA

CONFIGURABLE TOOLS

1. WASP SPITFIRE RED Extruder extruder for fast and high-quality prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)

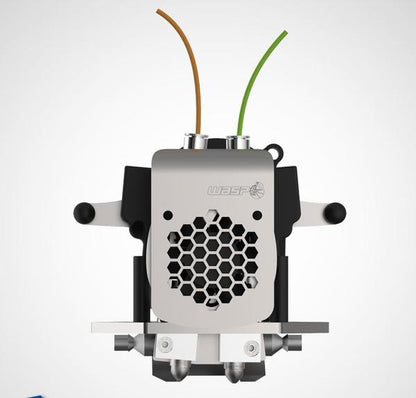

2. WASP ZEN Double extruder for multicolor or multi-material prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
3. WASP FLEX Extruder direct drive extruder for flexible materials up to shore 50A. Nozzle diameter: 0.4 mm (filament diameter 3 mm)

SOFTWARE

1. Operating systems Windows, Mac, Linux
2. Slicing software compatible with all slicing software (Cura - SLic3r - Simplify3D® )

File type .stl, .obj, .gcode

INTERFACE

• USB Pendrive
• Wifi network
• TFT touch screen

PHYSICAL DIMENSIONS

• Dimensions 49 cm x 44 cm x 87 cm (19X17X34in)
• Machine weight 30 kg 66lbs
• Dimensions for shipping with cardboard box packaging on a pallet  50 cm x 58 cm x 114 cm, weight 35 kg (20X23X45in) 77lbs

SUPPLY

Input 110 V `60 Hz

Power consumption:

• _WASP SPITFIRE RED Extruder: 60 W max
• _WASP ZEN Extruder: 120 W max
• _Heated Floor: 500 W peak
• _ Chamber heating: 750 W peak / average consumption 300 W

TEMPERATURE

• Operating environment 20-30 ° C
• Warehouse 0-30 ° C

MECHANICS

• Aluminum frame and cover , painted steel, polycarbonate, PU.
• Metal casing, eliminates machine vibrations, ensures greater printing precision.
• Print Floor  Aluminum adjusted
• Movements  nylon wheels on anodized aluminum profiles
• straps Delrin with a core of stainless steel, high-temperature resistant
• insulation  foam in a thermo-acoustic insulating material
• Motors  Stepper

TECHNICAL INNOVATIONS

• Hot and Cold technology heated and mechanical cooled work chamber
• WIFI network connection to monitor and control the machine remotely
• New GUI new graphical interface with TFT screen
• On-board camera for print monitoring and timelapse
• Remote assistance WASP technicians can, if necessary, intervene with remote control

EXTRA

• SUSPENDED BOWDEN (cc)It makes it possible to release the inertia on the suspension elastics and to improve exponentially the quality and the speed of printing.
• RESURRECTION SYSTEM (cc)The system resumes interrupted printouts in the event of accidental shutdowns or sudden power failure.
• FREE ZETA SYSTEM (cc)It is possible to measure at what height the printing stopped and start again from this height.
