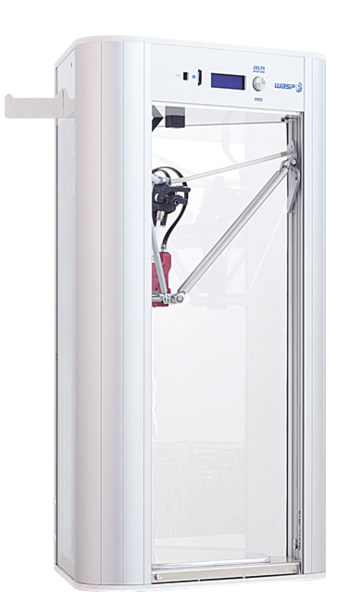

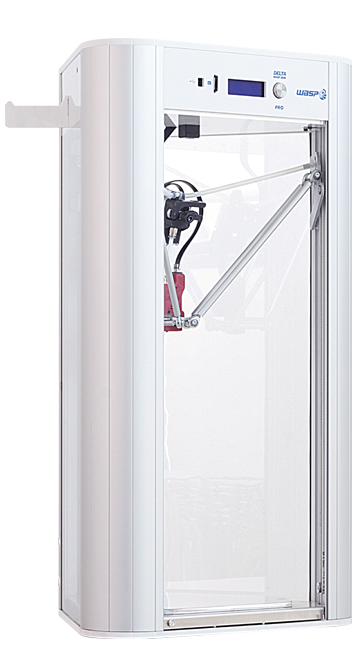

DELTA WASP 2040 PRO

The Delta WASP 2040 PRO 3D printer is made of aluminum and PMMA, with non-deformable belts loaded in steel.
Accurate and reliable with all materials, the Delta WASP 2040 PRO is the fastest delta 3D printer in the world.

The machine is equipped with an auto calibration system and a rectified print surface which guarantees the best performance over time.

The printer driver is suspended, Bowden Suspended (cc) ,  to make printing faster and minimize weight on the mobile crew. The machine also contains all the WASP systems for printing recovery such as the Resurrection System (cc) , Free Zeta System (cc) and end of the material system.

Specifications

Maximum print volume Ø 200 xh 400 mm
Minimum layer height  50 microns Maximum print speed (*)  500 mm / s Maximum movement speed (*)  800 mm / s Acceleration (*)  15,000 mm / s 2 Heated print bed up to 110 C ° Standard nozzle diameter WASP SPITFIRE RED Extruder with LT cartridge with 0.4 mm diameter nozzle

* All speed data refer to the Delta WASP 2040 PRO configured with extruder WASP SPITFIRE RED Extruder 0.4 mm

MATERIALS

Usable filaments Ø 1.75 mm
PLA
PETG
ABS
PA carbon

CONFIGURABLE TOOLS

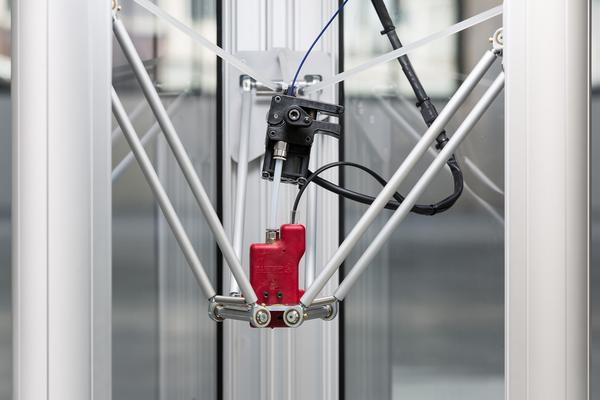

WASP SPITFIRE RED Extruder extruder for fast and high quality prints.
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)

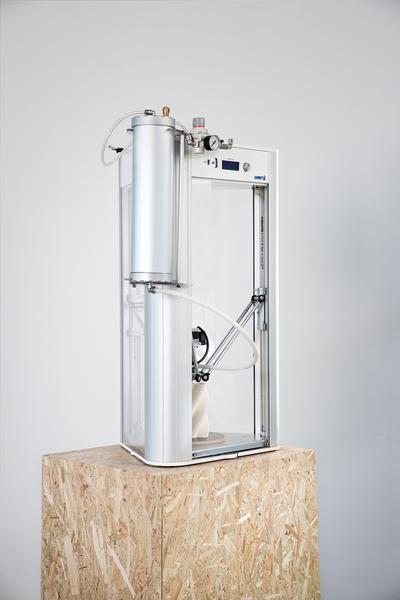

LDM WASP Extruder  extruder for ceramic materials.
Nozzle diameter: 1.2 mm, 2 mm

SOFTWARE

Operating systems  Windows, Mac, Linux
Slicing software compatible with all slicing software (Cura - SLic3r - Simplify3D® )

File type .stl, .obj, .gcode

INTERFACE

SD cards
LCD screen

PHYSICAL DIMENSIONS

Dimensions 49 cm x 44 cm x 87 cm (19X17X34in)
Machine weight 25 kg (55lbs)
Dimensions for shipping with cardboard box 50 cm x 58 cm x 101 cm, weight 30 kg  (20X23X40in) 66lbs

SUPPLY

Input

110V 50/60 Hz

Absorbed power
WASP SPITFIRE RED Extruder: 60 W max
Heated surface: max 500 W

TEMPERATURE

The environment of use  20-30 C °
Warehouse  0-30 C °

MECHANICS

Frame and cover aluminum, polycarbonate, PMMA.
Printing table Ground  aluminum Nylon wheel
movements on anodized aluminum profiles - TPU belts with stainless steel core resistant to high temperatures Stepper
motors

EXTRA

SUSPENDED BOWDEN (cc)
It makes it possible to release the inertia on the suspension elastics and to improve exponentially the quality and the speed of printing.

RESURRECTION SYSTEM (cc)
The system resumes interrupted printouts in the event of accidental shutdowns or sudden power failure.

FREE ZETA SYSTEM (cc)
It is possible to measure at what height the printing stopped and start again from this height.

MATERIAL INCLUDED

• One WASP SPITFIRE RED Extruder kit

• 1 kg of PLA on reel

• Packaging for national / international shipping in cardboard box 50 cm x 58 cm x 101 cm (20X23X40in)

• Optional LDM Package

What's in the box

Packages
